Extracting formal specifications from Apache ZooKeeper with AI tools and Apalache

Date: May 26, 2026

This text is artisanally typed using a keyboard, with occasional suggestions by Copilot. The figures are generated with ChatGPT 5.5. The plots are produced by AI-generated scripts from the experimental data. By AI tools, I refer to Codex GPT 5.4/5.5 and Claude Code Sonnet/Opus 4.6/4.7.

Recently, I gave a talk on “Interactive symbolic testing with TLA⁺, Apalache, and LLMs” at the TLA+ Community Meeting 2026. If you prefer watching talks, see the talk recording. I talked about the new Apalache JSON-RPC and how it can be used to test real distributed protocols. As the first example, I presented the case study on symbolic testing of TFTP protocol, which was published in December 2025. As the second example, I presented a case study on symbolic testing of Apache ZooKeeper, which is the subject of this blog post. I also talked about this as ongoing work at D-CON 2026 (thanks to Uwe Nestmann for inviting me!).

In case of TFTP, the main hypothesis was that AI tools can accelerate the process of writing test harnesses for protocol testing. In October 2025, I used Copilot and Sonnet 4.5. The answer was “yes”, though the AI tools in 2025 required plenty of manual intervention and literally drained my energy. Back then, I wrote the TLA⁺ specification of TFTP by hand. I also had to refine it manually, in about 20-25 iterations. As a reward, the test harness helped me to find a few bugs in the real implementations. I still had to triage the bugs manually though.

Footnote: Actually, the real question for me was not whether AI tools could help the engineers to write a test harness. In my experience, engineers avoid writing test harnesses as much as they can. So the real question was whether the AI tools could do the job that engineers avoid doing.

The next step was to ask the following question:

Can AI tools extract formal specifications from the source code and write test harnesses?

In March-April 2026, I ran Claude Code Sonnet/Opus 4.6 and Codex GPT 5.4 to check this hypothesis on the example of Apache ZooKeeper. This case study is the subject of this blog post. I already hinted at this work in Debug as Code Generation. To this end, I have been running this loop:

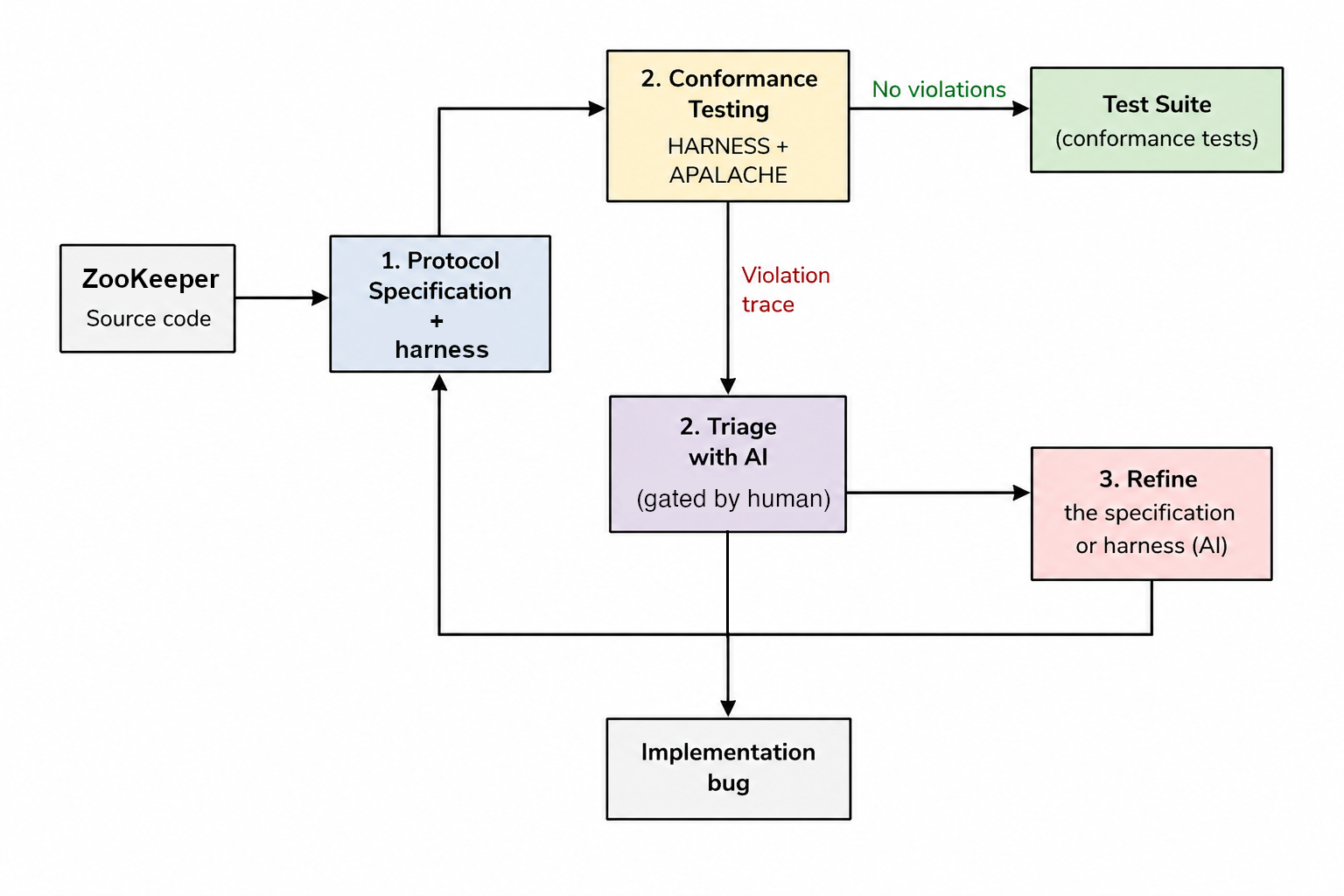

Extraction loop — Figure 1: Formal specification extraction loop with AI tools and Apalache.

In general, it looks like the answer is “yes, but”. The extraction-checking loop stopped finding new mismatches between the behavior of a running ZooKeeper replica and the extracted formal specification and harness. So I do not have new logs to feed into Codex and Claude Code, and it is good time to reflect on this.

Look carefully at Figure 1. Even though my AI agents had a lot of freedom in coming up with their plans and implementing them, I did not let the agents run wild. I keep reading claims about “autonomous agents” and “agentic loops”, where agents simulate unhealthy human management loops. I still had to read the triage reports and implementation plans. Several times, had not I caught an agent in planning to introduce really bad workarounds in the specification, we would have gone down the rabbit hole of slop. Every iteration had a separate commit, so we could keep track of regressions in the specification and harness. Having said that, I admit that my reviews were high-level and intuitive, not Github-level reviews.

Did I burn thousands of dollars on this? Not at all. I did this case study with two lowest-tier subscriptions to Codex and Claude Code, which cost me about $80 for two months in total. (Given the news about Claude price changes and Copilot price changes, this becomes more expensive). Most of the time went into running the testing experiments on my workstation: AMD Ryzen 9 5950X processor (16 physical, 32 logical cores), 128 GB RAM. The cool thing about my testing architecture is that the machine was running 10-15 episodes of 300 steps in parallel on 10-20 cores, totalling in 30000-90000 steps in a single campaign. Hence, the AI tools had to triage 1-30 counterexamples at once, before starting a new campaign.

Since we now live in a hype-driven world, I want to stress that this is still an experiment. I am pretty sure that Ouyang et. al. had much more time to write their TLA⁺ specifications of ZooKeeper and to conduct their experiments.

If you read the blog post carefully, you will probably find some points that could be investigated further. I have decided to time box this experiment and report about it where it is.

💡 Tip:

As I mentioned earlier, I stopped accompaying my blog posts with complete artifacts. AI slop forks are real. It takes me time to design and conduct the experiments on a beefy machine, as well as to find the right format to interpret and explain the data. It only takes 10-15 minutes to repackage the benchmarks and results with an AI tool, having the experimental data. Hence, I am sharing my lab book with the customers and researchers, upon request.

If you do not want to read the whole text, jump to the conclusions.

1. The effort

This experiment took about two months, from March 2026 to April 2026. The git repository has 336 commits in total. Except for several initial commits, each new commit corresponds to a new iteration of the extraction-checking loop.

You can see the statistics in the figures below:

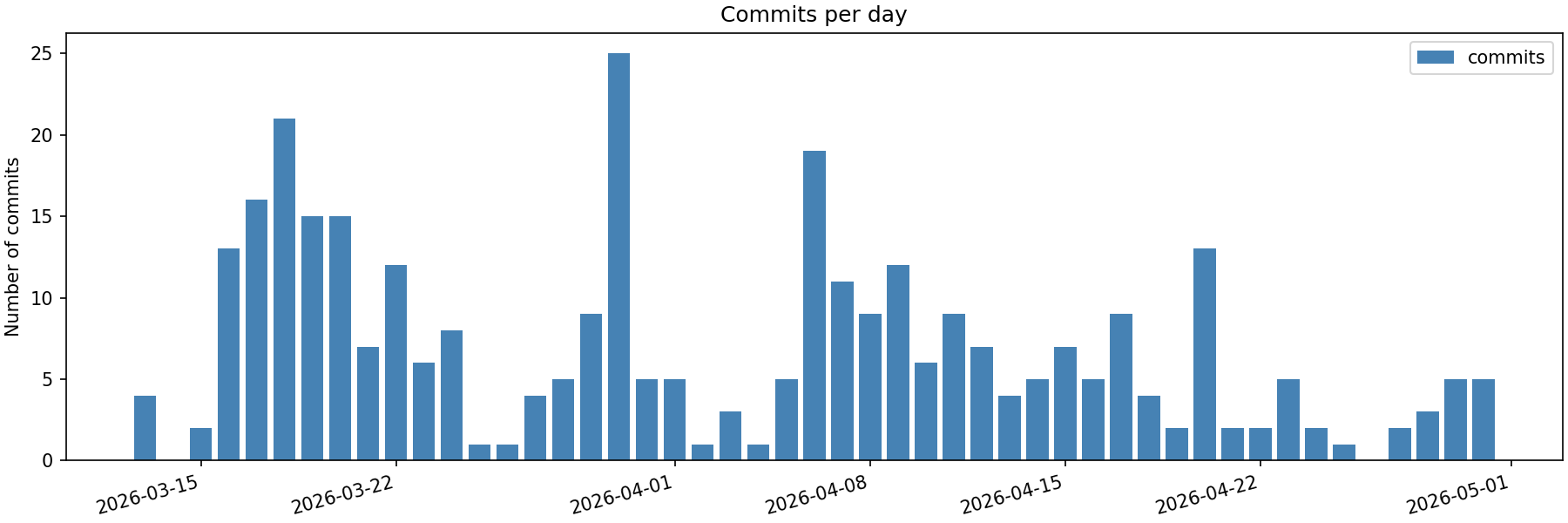

Figure 2 shows the number of commits per day.

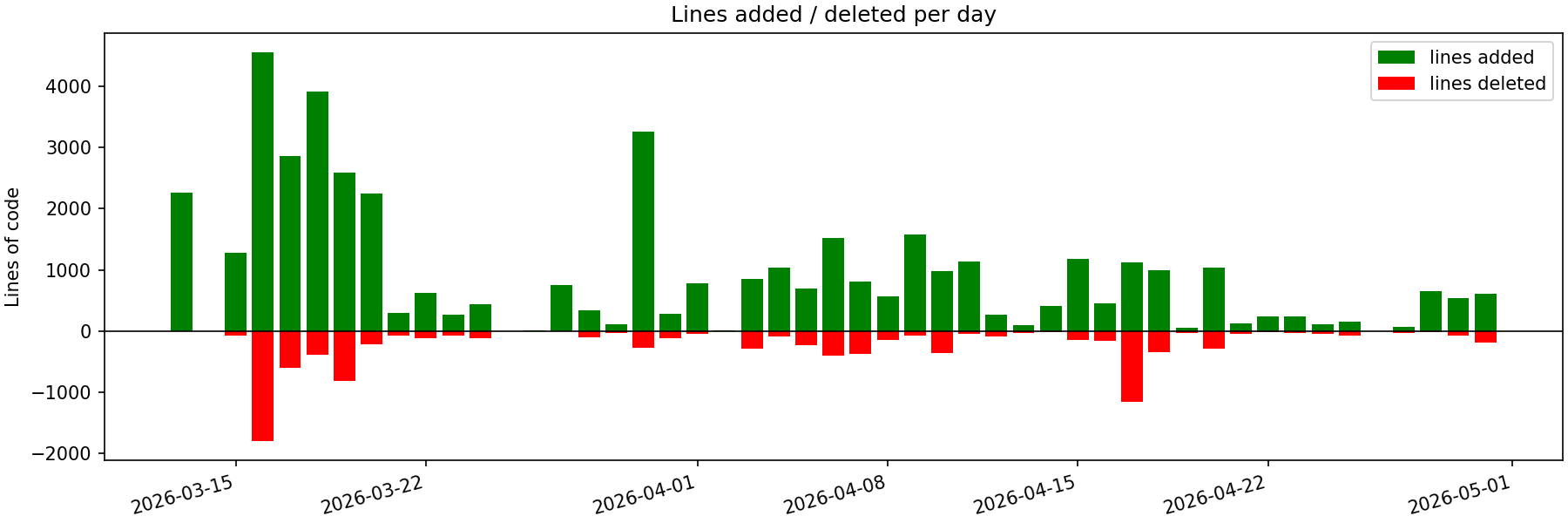

Figure 3 shows the number of lines added and deleted in the whole repository.

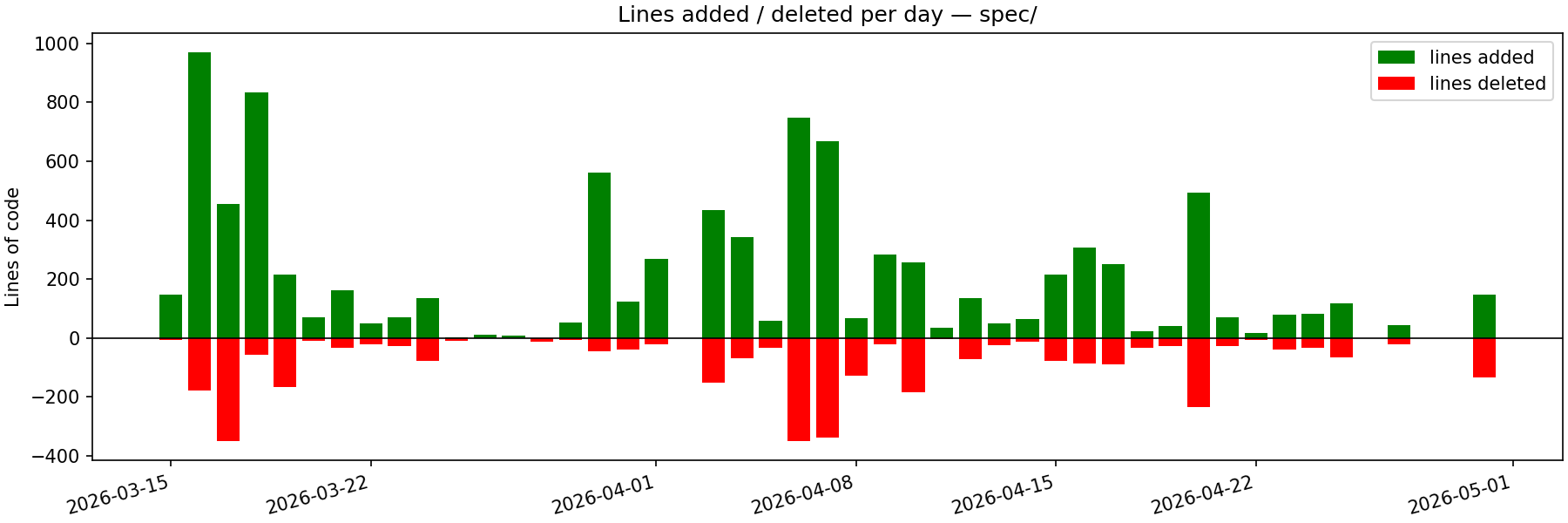

Figure 4 shows the number of lines added and deleted in the specification files.

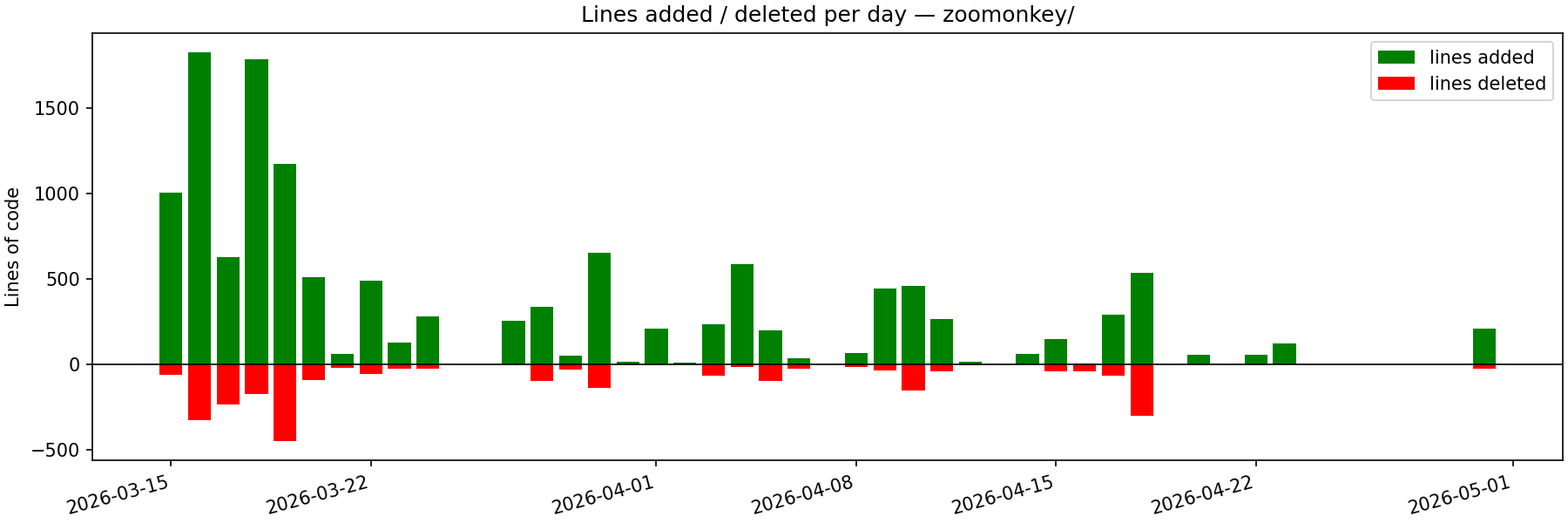

Figure 5 shows the number of lines added and deleted in the test harness (zoomonkey).

Git stats — Figure 2: Commit statistics in this experiment.

2. Extracting formal specifications

As I learned with TFTP testing, AI tools need a good predefined architecture. Hence, I spent some time capturing this architecture in AGENTS.md and CLAUDE.md. The formal specification is composed of several modules, each corresponding to a subprotocol of ZooKeeper:

Module process captures the normal lifecycle of a ZooKeeper replica: start, on_started, on_stopped. Crashes and restarts are handled by the system module.
Module tcp captures the standard TCP lifecycle: connect, accept, disconnect, half_close, reset, refused.
Module fle captures the Fast Leader Election protocol, which is used by ZooKeeper to elect a leader among the replicas: send_notification, rcv_notification, become_leader, become_follower, restart_election.
Module zab captures the ZooKeeper Atomic Broadcast protocol and its clients. It has 22 actions, including proposal, ack_proposal, commit, diff, trunc, snap, client_connect, client_ping, client_create, client_set_data, etc.
Module system composes the above modules and adds failures.

These modules were written by the AI tools, by following the high-level architecture, hands off the keyboard. To get the flavor of the specification, look at one action from the specification of ZAB:

@action(inline=False)
def send_diff(c: Context[ZabState], leader: Expr, follower: Expr, next_turn: Expr):
    """Leader sends DIFF to a follower (requires quorum of epoch_acked)."""
    s = c.state
    c.assume(follower != leader)
    c.assume(_proc_up(s, leader))
    # The leader must have completed its election before registering in
    # epoch_leader.  Without this guard a FOLLOWING replica whose
    # fle_current_vote happens to be targeted by another follower can
    # act as a second leader for the same epoch, violating leadership2.
    c.assume(s.fle_role[leader] == LEADING)
    c.assume(_follower_targets_leader(s, follower, leader))
    c.assume(s.zab_sync[follower] == SYNC_EPOCH_ACKED)
    c.assume(_has_quorum_of_sync_state(s, leader, "epoch_acked"))
    c.assume(_can_send_diff(s, leader, follower))
    # Leader-initiated
    c.assume(_turn_matches_iut_actor(s, leader, next_turn))
    next_s = s.edit()
    next_s.zab_sync[follower] = SYNC_DIFF_SENT
    next_s.zab_state[leader] = SYNCHRONIZATION
    next_s.zab_accepted_epoch[leader] = s.zab_current_epoch[leader]
    next_s.zab_persisted_accepted_epoch[leader] = s.zab_current_epoch[leader]
    # By this point ACKEPOCH quorum has formed (see epoch_acked guard above),
    # which means ZK's Leader.lead() has already called setCurrentEpoch on
    # disk. Bump the currentEpoch shadow here to match that disk write.
    next_s.zab_persisted_current_epoch[leader] = s.zab_current_epoch[leader]
    next_s.epoch_leader[s.zab_current_epoch[leader]] = (
        s.epoch_leader[s.zab_current_epoch[leader]].union(Set(leader))  # type: ignore
    )
    s.zab_action = ZabAction.SendDiff(  # type: ignore
        ZabDiff(leader=leader, follower=follower)
    )

As you can see, this is Python code, not TLA⁺. I noticed that the AI tools are quite good at writing Python. Hence, they write the specification in a Python DSL, which is automatically translated to TLA⁺. The test harness is also written in Python, and it uses the Apalache JSON-RPC to interact with the model checker. If you are interested in the details of this Python DSL, contact me.

The fragment of the above action in TLA⁺ looks like this. The complete generated specification looks much more hairy. If you are still curious, check its snapshot in this gist.

In the table below, you can see the statistics on the formal specification. Since the TLA⁺ specification is generated from the Python code, this specification is monolithic and has no submodules.

Module	Actions	Python LOC	TLA⁺ LOC
process	5	90	-
tcp	6	220	-
fle	5	1605	-
zab	22	2256	-
system	9	1603	-
Total		5774	3065

3. Generating the test harness

The test harness is also written in Python. It is composed of several modules, which are listed in the table below.

Subsystem	Modules	Lines
Orchestration	main.py, scheduler.py, runner.py	3462
Validation	oracle.py, serde.py	2493
Networking / wire	comms.py, client_wire.py, quorum_wire.py, election_wire.py	3063
Data model / support	events.py, queues.py, config.py, fixed_tree.py, log.py	867
Tooling	log_to_mermaid.py	414
Total		10299

The interesting design choice here is that the test harness runs a single replica of ZooKeeper. We call this replica implementation under test (IUT). The whole distributed system exists only in the formal specification and its behavior. This is conceptually similar to a Digital Twin of the real distributed system.

4. Running the test harness

Running the test harness looks quite boring:

$ ./scripts/run-parallel.sh 8 -- --replicas 3 --episodes 20 --steps 500 \
  --failure-rate 0.2 --fle-rate 0.05 --fallback-rate 0.1 --decay 0.8 --crashes 0

It basically runs 20 episodes of 500 steps in parallel, with 3 replicas and a number of parameters to control the test scenario generation. The script is using GNU Parallel to run the episodes in parallel. Since each test runs a single actual replica and simulates the rest of the distributed system with the specification, running multiple experiments in parallel is easy. We only have to make sure that different replicas get assigned different ports.

Every episode produces a detailed log of events. If it finds an invariant violation or a mismatch between the behavior of the real replica and the specification, it produces a trace in the ITF format. These logs and traces are read by the AI tools to triage the mismatches and to improve the specification and the test harness.

Similar to tftp-testing, I have a script to convert the logs into a sequence chart in Mermaid. However, for a system of this complexity, these diagrams are hard to digest. Instead, I produce a high-level figure of the test campaign that shows the events in all episodes in one big picture. See Figure 6. Click on it to see the full-size version and examine it in detail.

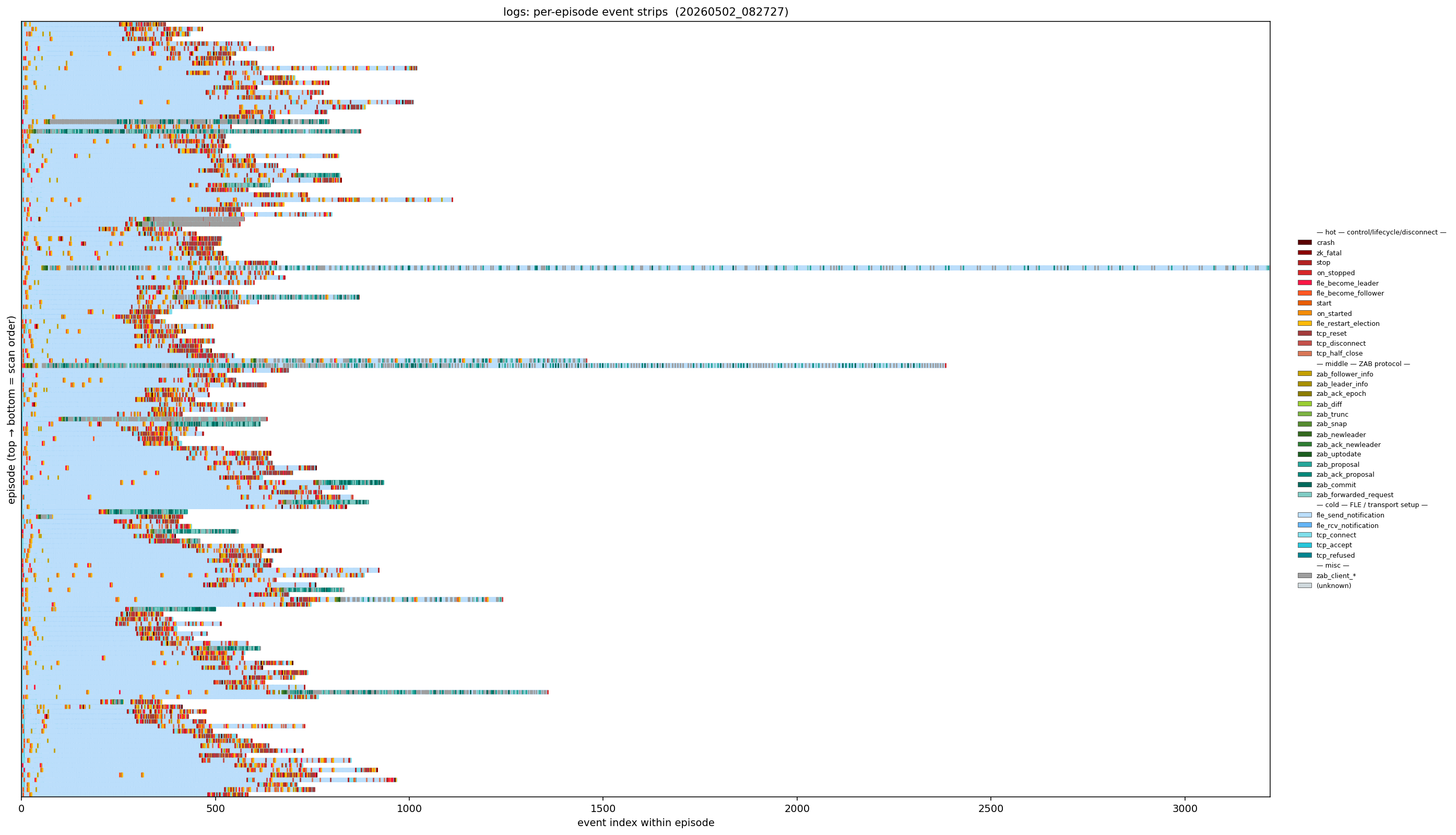

Figure 6: Episodes summary of the test campaign (view the full-size image by clicking).

If you look at the events in the figure, you will see that the most episodes have productive events such as ZAB proposals, commits, diffs, snapshots, client operations, etc. However, a few episodes degrade into permanent leader election, where the implementation-under-test keeps sending FLE notifications. Basically, the two simulated replicas keep working together and exclude the IUT from the quorum.

5. Triaging conformance mismatches

Back in October 2025, Copilot + Sonnet 4.5 were quite bad at triaging specification mismatches. This may be attributed to better LLM models. I also believe that my effort of definining a good architecture for the test harness paid off this time. Below are fragments of a triage report by Claude Code Opus 4.7:

A single oracle-reported spec violation landed in the 2026-04-24 parallel sweep. The dump files live at:

logs/20260424_071307/episode_009_step_160_spec_violation.itf.json
logs/20260424_071307/episode_009_step_160_spec_violation_trace.itf.json

Configuration: inst03 (PERSIST_IUT_STATE=True), 3 replicas, permutation {1: 2, 2: 3, 3: 1}, IUT is spec replica 1 / dynamic id 2. Violation reason: output_queue_violation — the oracle could not validate the IUT’s zab_follower_info output after 10 drain passes.

Episode timeline (relevant subset)

Replica 1 starts at 10:32; long FLE churn; becomes follower; emits zab_follower_info at 10:41 with accepted_epoch=0 — spec accepts (transition 31). No zab_leader_info ever validated in this episode.
At 10:58 replica 1 is stopped (tester action, not crash). On-disk acceptedEpoch at that moment: still 0 (follower never received LEADERINFO, never persisted).
At 11:06:52 replica 1 restarts. inst03 preserves the data directory, so on-disk acceptedEpoch is read back as 0.
At 11:12:34 IUT emits fle_become_leader(r1) (transition 27). Spec speculatively bumps zab_accepted_epoch[1] to 1 via candidate_epoch_capped in spec/system.py:665.
At 11:12:42 scheduler picks simulated→IUT zab_follower_info (transition 31 on the simulated follower side). Spec’s send_followerinfo (spec/zab.py:900) atomically observes leader-side quorum (1 IUT + 1 simulated ≥ majority of 3) and bumps zab_persisted_accepted_epoch[1] at spec/zab.py:972 — the comment at line 1068 acknowledges this is the earliest-disk-write model of Leader.getEpochToPropose().
At 11:12:48 tcp_disconnect r1 ↔ r3 (quorum).
At 11:12:50 IUT emits fle_restart_election(r1) (transition 30). Spec rolls back zab_accepted_epoch[1] to zab_persisted_accepted_epoch[1] per commit aee611c (spec/system.py:648-693) — which is already 1 due to step 5, so the rollback is a no-op on the live field and the shadow stays at 1.
At 11:14:16 replica 1 (now FOLLOWING r2 in both spec and IUT) emits zab_follower_info(accepted_epoch=0). Spec expects 1. Blocked.

Root cause

The spec assumes Leader.getEpochToPropose()’s disk write has completed atomically the moment any FOLLOWERINFO arrival would establish quorum — that’s the design of the zab_persisted_accepted_epoch[leader] bump in send_followerinfo (spec/zab.py:972). In this trace the IUT’s leader thread either never processed the simulated FOLLOWERINFO at all (the incoming quorum connection to r1 was disrupted around that time — the TCP disconnect at 11:12:48 is between r1 and r3, but similar disruption to the r2–r1 quorum path around 11:12:42–48 would leave getEpochToPropose() blocked), or processed it but was interrupted before the disk write completed. Either way, the IUT’s on-disk acceptedEpoch stayed at 0 while the spec’s shadow went to 1.

The aee611c rollback is correctly applied but operates on the live epoch field only; by design it restores live from shadow, so when the shadow itself is stale-high, restart_election can’t recover. This is the new Family-A sub-variant noted in the earlier audit: speculative advance of the persisted shadow, not just the live epoch.

Several things are impressive here:

The test harness stopped a replica and dropped a TCP connection at the right moments, so the replica did not have a chance to persist the new accepted epoch. It did not happen often, but the parallel campaign was diverse enough to trigger this scenario. To be fair, the initial version of the test harness would not be able to trigger this scenario. I had to teach the AI tools to properly diversify the test scenarios.
Claude figured this out in a matter of minutes. It would be hard for me to figure this out.
It also proposed a fix.

6. Checking invariants and producing examples

Since the AI tools write the specification and the test harness, we have to evaluate the quality of the specification and the harness together. To this end, we do two things:

Add state invariants to evaluate safety.
Add state examples to illustrate reachability of interesting states.

6.1. State invariants

To our luck, ZooKeeper already has several TLA⁺ specifications for earlier versions. I let the AI tools harvest these specifications for invariants.

For example, these are the shortest invariants these tools wrote:

@invariant
def leadership1(s: SystemState):
    return s.REPLICA.forall(
        lambda i: s.REPLICA.forall(
            lambda j: (
                _is_established_leader(s, i)
                & _is_established_leader(s, j)
                & (s.zab_accepted_epoch[i] == s.zab_accepted_epoch[j])
            ).implies(i == j)
        )
    )

@invariant
def leadership2(s: SystemState):
    return Set(Val(1), ..., Val(s.MAX_EPOCH)).forall(
        lambda epoch: s.epoch_leader[epoch].size <= Val(1)
    )

@invariant
def fle_wait_finalize_sound(s: SystemState):
    return s.REPLICA.forall(
        lambda replica: (
            _fle_invariant_replica_live(s, replica) & s.fle_wait_finalize[replica]
        ).implies(
            _fle_has_proposed_recv_quorum(s, replica)
            | _fle_has_local_ooe_quorum(s, replica)
        )
    )

Their TLA⁺ translations look like this:

Leadership1 ==
    \A i142 \in REPLICA: \A j143 \in REPLICA:
        (/\ /\ /\ (fle_role[i142] = "LEADING")
               /\ \/ (zab_state[i142] = "synchronization")
                  \/ (zab_state[i142] = "broadcast")
            /\ /\ (fle_role[j143] = "LEADING")
               /\ \/ (zab_state[j143] = "synchronization")
                  \/ (zab_state[j143] = "broadcast")
         /\ (zab_accepted_epoch[i142] = zab_accepted_epoch[j143])) => ((i142 = j143))

Leadership2 ==
    \A epoch144 \in (1)..(MAX_EPOCH): (Cardinality(epoch_leader[epoch144]) <= 1)

The translation of fle_wait_finalize_sound is a bit longer, you can check it in the FleWaitFinalizeSound.

We have 11 invariants in total. The other 8 invariants are more complex. These invariants are checked by the test harness with Apalache. We can also check them against the generated TLA⁺ specification.

6.2. Reachability examples

I usually write “falsy invariants” to check reachability of interesting states. Again, the AI tools are quite good at writing such “examples”. For instance:

@example
def at_least_one_committed(s: SystemState):
    return s.REPLICA.exists(
        lambda replica: s.zab_last_committed[replica].index >= Val(1)
    )

This example is translated to the following TLA⁺ invariant:

AtLeastOneCommitted ==
    ~(\E replica63 \in REPLICA: (zab_last_committed[replica63].index >= 1))

To see an instance of this example, I ran a test campaign with 10 episodes of 100 steps each. One of the episodes reached a state that satisfies at_least_one_committed. Below is the summary of this episode by Claude Code Opus 4.7:

Trace summary — example of at_least_one_committed

Episode 5, step 86. Replica mapping: spec 1 ↔ dynamic 2 (the IUT), spec 2 ↔ dynamic 1, spec 3 ↔ dynamic 3. So the IUT is spec replica 1 in the analysis below.

What happened, in order:

Initial election attempt fails. Spec 1 (IUT) briefly thinks it’s leader (fle_become_leader replica=1 at t≈+25s) but then has to fle_restart_election (t≈+45s). Spec 3 simultaneously becomes leader (fle_become_leader replica=3 at t≈+19s); spec 2 becomes follower early on.
Stable leadership formed under spec 3. After the restart, IUT (spec 1) joins as follower of spec 3 (fle_become_follower replica=1, then zab_follower_info {follower_id:1, leader_id:3}).
ZAB recovery completes. The leader (spec 3) walks IUT through LEADERINFO → DIFF → NEWLEADER → UPTODATE (all with follower_id:1, leader_id:3). A second LEADERINFO/NEWLEADER/UPTODATE round (no ids logged) syncs the other simulated follower spec 2. All three replicas reach zab_state = “broadcast”.
Write submitted to the leader. Step 85: a simulated client connects to spec 3 (the leader) and issues zab_client_create(“/p1”).
Proposal phase (step 86):
- Leader (spec 3) emits zab_proposal at zxid=1, epoch=1.
- A follower acks: zab_ack_proposal zxid=1 validates cleanly (transition 52).
- With its own self-ack the leader reaches quorum and commits locally.
- Oracle then detects the violated invariant — i.e. the dual @example fired.

Violation state (spec replica 3 only):

zab_history[3] = [{create, /p1, zxid=1, epoch=1}]
zab_last_committed[3] = {index:1, zxid:1}
zab_committed_zxid = 1
Replicas 1 (IUT) and 2 still have zab_last_committed.index = 0 and empty histories — the commit has not yet been broadcast to them.

Below is the sequence diagram of this full episode. Click on it to see the full-size version and examine it in detail. It is quite long, so feel free to scroll through it.

At least one committed — Figure 7: A trace where at least one replica has committed (view the full-size image by clicking).

7. Conclusions

The good:

It is actually possible to extract formal specifications from the source code of a real distributed system and to write test harnesses with AI tools. We have to keep in mind that this requires a verification loop, which uses a tool such as Apalache.
In this experiment, we extracted a specification that captures five protocols.
If we do not try to one-shot the testing process and follow an iterative process, the AI tools actually help us.
Comparing to tftp-testing, the AI tools in 2026 are much better at triaging specification mismatches. The whole process is much less energy-draining now.

The bad:

I have no idea about the extracted specification. When I write a specification by hand, I internalize the protocol behavior. Even after I forget the details, I can still come back and recover them from the spec. Here, it is much harder.
If we focus on bug finding, it is fine to have a hard-to-understand specification. However, from the maintainability perspective, it is a big problem.

Even though the whole development is quite exciting, my main takeaway is that writing formal specifications is still a human job. AI tools can assist us in producing test harness and find issues.

If you need help with writing formal specifications and producing test harnesses, contact me. I can help you with that. It still takes time, expertise, and effort to do it right.

Want to talk?

If you want to pick up my brain for a few hours, drop me an email. After that, we can switch to a messenger of your choice (e.g., Signal, Telegram, or others) or have a call. For short consultations, I accept payments via Stripe. I also consider longer-term engagements (from weeks to months), which would require a contract. You can see my portfolio at konnov.phd. I am based in Austria (CET/CEST) and have experience working with clients from the US, UK, and EU.
